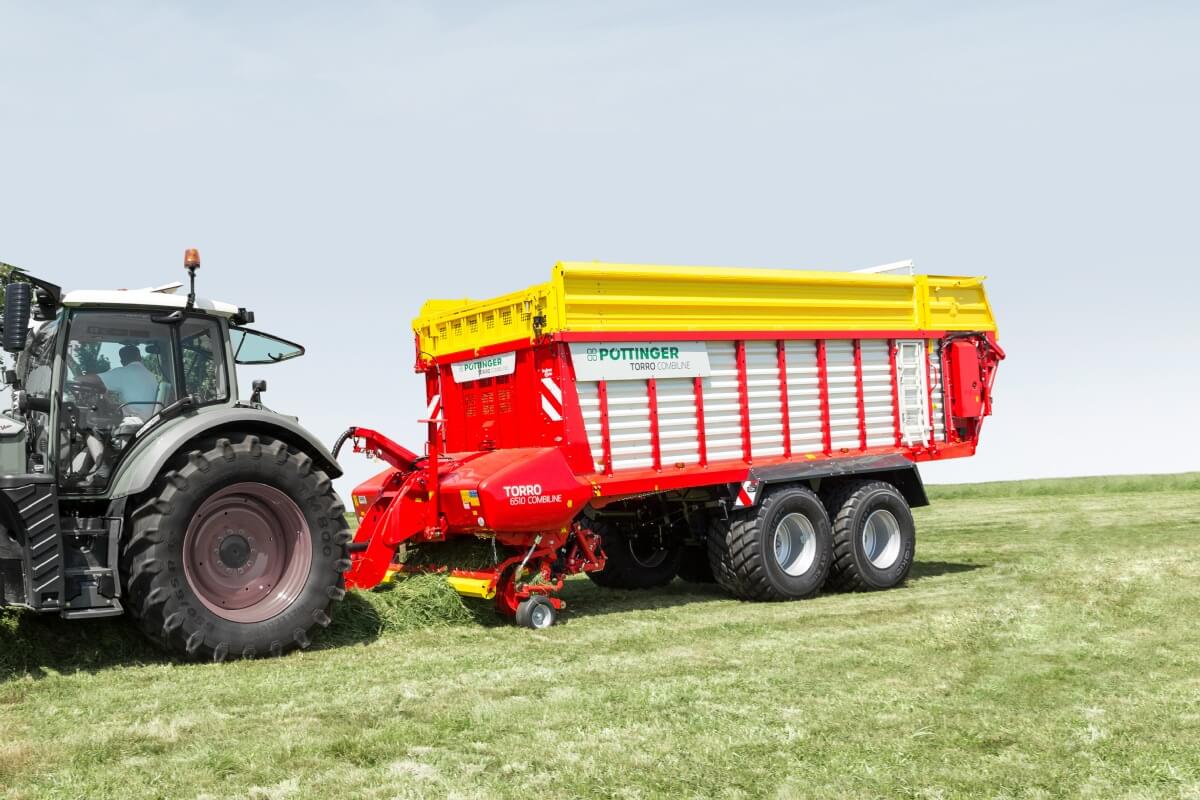

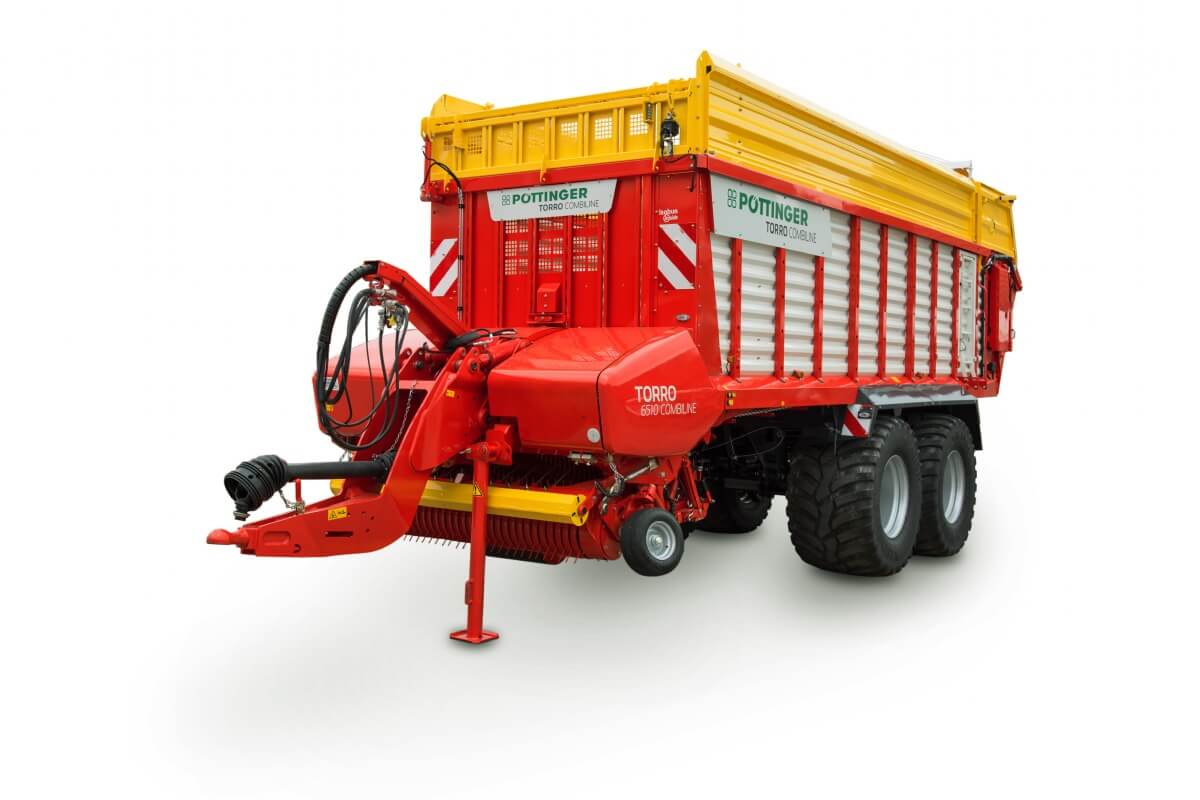

PÖTTINGER TORRO 6510 D COMBILINE Combined Rotor Loader Wagon

TORRO COMBILINE – loader wagon technology 2 in 1 silage/harvesting combination
Maximum versatility and increased machine utilisation are guaranteed as a result. In combination with its high output, the TORRO COMBILINE offers excellent cost-effectiveness, again underlining the significance of the loader wagon as the harvesting process for the future.

Key features:

• Easy hitching.  A turning angle of up to 60° is possible even with steered axles, dependent on the tractor and tyres thanks to the narrow design of the drawbar.
• High or low drawbar.  Choose 2 t, 3 t or 4 t drawbar load, drawbar shock absorber is fitted as standard equipment.
• Hydraulic steered axles. The system complies with DIN ISO 26402 and guarantees wagon follows in tractor's tracks on slopes and in the clamp.
• Compact, fail-safe design. Track rod with automatic interlock for single-handed attachment.
• Electro-hydraulic controlled steering.
• A high level of stability when driving at high speeds and the best manoeuvrability in tight corners is ensured by the speed-dependent steering angle adjustment system.  Tandem and tridem axles only require a single track rod control.  Load sensing, air brakes and 26.5" tyres are required.
• Lowest tyre wear, easy hitching, compact design without mechanical components and axles can be locked by pressing a button on the terminal.
• High quality frame components. Clear inside width of 2.30 m, smooth wall panels with a special coating ensure the wagon is completely empty of forage after unloading, tailgate opening angle can be adjusted as required from the tractor seat, enter the wagon's loading chamber using a convenient access ladder, floodlights mounted on the front panel provide excellent illumination of the loading chamber in the dark.

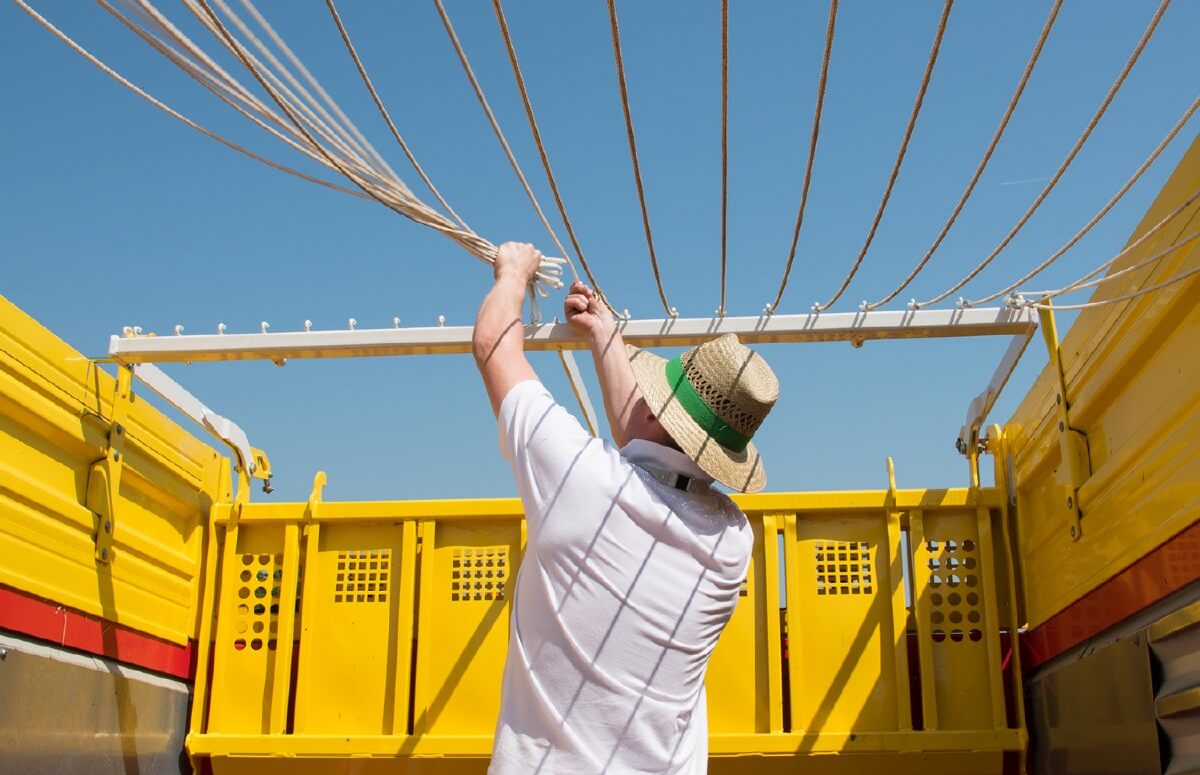

• Roof ropes options with rear tarpaulin for retaining crop material with a low density. Roof rope release system in conjunction with the hydraulic folding loading flap.
• LED package 2 (loading chamber and two reversing lights).
• LED package 3 (loading chamber and two reversing lights, two for pick-up, one for knife bank).
• Video system with monitor and one or two cameras.
• Flashing beacon.
• Power transfer up to 2300 Nm. 10% more output.  The driveline is designed for high outputs. TORRO loader wagons are designed for tractors of up to 300 hp.
• ISOBUS control. A load cell on the rotor gearbox measures the drive torque and can be precisely adjusted to the type of crop. During loading, the torque sensor on the gearbox together with sensors in the front panel and the automatic loading flap control the scraper floor to deliver complete forage protection without leaving the tractor seat.
• Load sensing.  All PÖTTINGER loader wagons are load-sensing compatible.
• Beater rotor drive transmission. The driveline to the beater rotors is concealed within the frame. The high-strength drive shaft is protected by a cam-type clutch set at 1700 Nm.
• Maximum intake. The PÖTTINGER floating pick-up, with six rows of tines, delivers impressive performance. A reliable and high intake pick-up is still achieved at high forward speeds and in difficult harvest conditions.
• Best ground tracking. Two jointed support arms ensure the pick-up has complete freedom of movement. A spring alleviates the pickup weight so less pressure is exerted on the ground. Height-adjustable 16 x 6.5-8 trailed jockey wheels contact the ground on precisely the same line as the tines to ensure perfect ground tracking and cornering.
• Unique travel of 150 mm for perfect ground tracking and exact contouring.
• Automatic pick-up reel switch off on TORRO D models with beaters.
• Perfect forage flow. The PÖTTINGER pick-up guarantees the maximum feed rate.  Controlled pick-up for clean forage as the pick-up is controlled from both ends by a steel cam track. The sealed twin-race roller bearings fitted to the cam rollers are designed to withstand high stresses.
• Additional tracking roller behind pick-up. This newly-developed additional tracking roller is located behind the middle of the pick-up on PÖTTINGER loader wagons. Being located in the center prevents it from sinking into tractor wheel marks and as a result, guarantees perfect ground tracking.
• POWERMATIC PLUS is the heart of TORRO series loader wagons. Rugged and powerful, the rotor delivers high output chopping and compression. POWERMATIC PLUS represents smooth, fuel-saving penetration of the crop and perfect transfer from the pick-up.
• Optimised tine geometry. Wide surfaces on the tine points ensure maximum performance even with wet and short forage.
• The newly-developed and patented geometry of the reversible TWIN BLADE knife doubles the service life. This unique swing-out knife bank makes light work of changing the knives.
• Central knife release system as standard.
• AUTOCUT knife sharpening system.Consistent chop length, 15% less power needed meaning much lower maintenance requirement.
• COMBILINE structure. The steel profile panels are fully enclosed, right to the top.
• Automatic loading system as standard.
• Sensors mounted in front panel and upper panel section.
• Loading torque measurement optional.
• One front flap – two functions. 1. Loader wagon mode and 2. Harvest transport mode. The forage compression flap is equipped as standard with a hydraulic cylinder which can be controlled from the tractor cab to enable a rapid change between pick-up loading and top-fill loading.
• Optional folding rotor duct cover.
• All TORRO COMBILINE wagons are fitted with tapered mudguards and closed frame beams.
• Automatic unloading. Unloading at the press of a button.
• TORRO D Models. A uniformly distributed blanket of forage is essential for perfect compaction. Two beater rotors guarantee perfect distribution. The aggressive tines deliver an impressive performance even with highly compressed forage. Bars on the rotors ensure maize material can be unloaded effectively. A pressure sensor in the beater rotor bearings controls the scraper floor automatically.
• Multifunction tailgate. The tailgate opening angle can be set to different positions from the tractor seat to minimise the effects of crosswinds.
• The optional cross conveyor belt is 890 mm wide and is powered hydraulically.
• The scraper floor has been lowered by 150 mm at the front end. The forage is conveyed upwards to the rear for uniform and smooth discharge. Hassle-free unloading with a low power requirement and four powerful drive chains ensure rapid unloading.
• All PÖTTINGER silage wagons are load-sensing compatible.
• Parabolic leaf spring chassis. Parabolic leaf spring chassis for 22.5" / 26.5" tyres with anti roll bar up to total weight of 23.15 sh t / 22 t. Hydro-pneumatic chassis with 26.5" / 30.5" tyres up to an overall weight of 24/31.
• Even more safety on the move. Optimum dual-circuit air brakes with electronic braking system EBS - ABS and RSP.
