PÖTTINGER HIT 4.47 Mounted Tedder
PÖTTINGER HIT 4.47 Mounted Tedder
PÖTTINGER manufacture a range three-point mounted HIT tedders with four, six and eight rotors feature the very latest DYNATECH rotor technology and a proven headstock.
The highest requirements of small to medium-sized farms are met in full by our 4-rotor tedders. Designed for all forage types, these machines provide you with optimum spreading quality and perfect crop take-up.

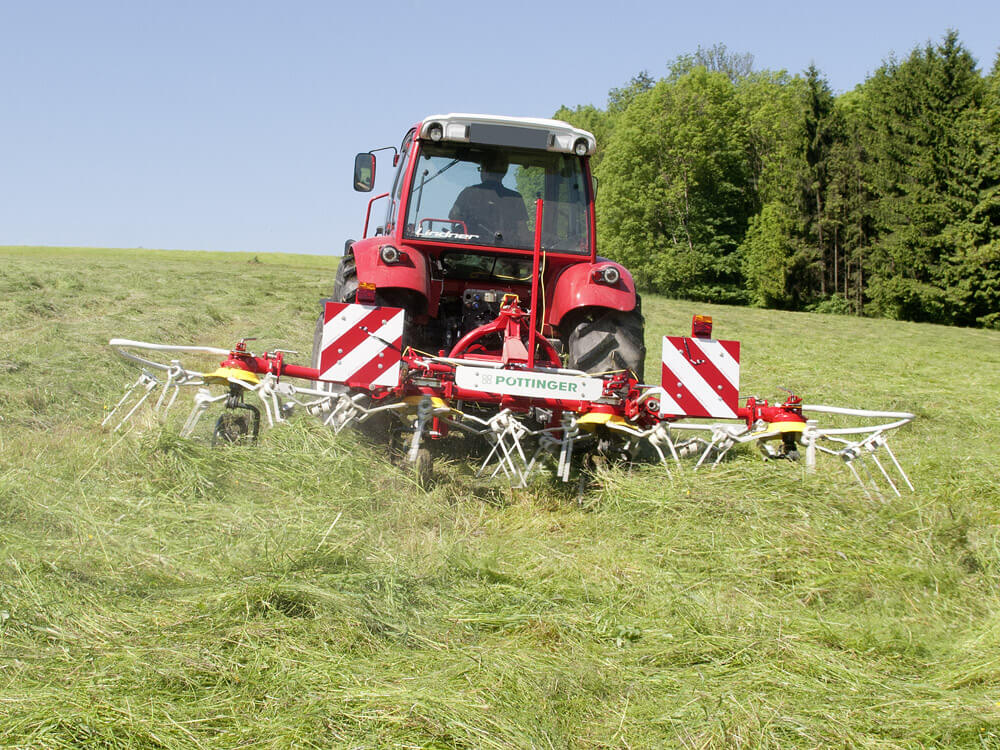

PÖTTINGER HIT 4.47 mounted four-rotor tedder offer working widths (DIN) of 14.44' / 4.40 m. This model features a highly compact construction and is ideal for working on slopes. It's six tine arms per rotor guarantee an optimum spread pattern for every forage.
Key Features:
- Fenceline tedding –easy and convenient.
- Actively setting the wheels at an angle causes the tedder to run diagonally so the forage is directed onto the mown area.
- Neighbouring crops remain untouched because the wheels can be set to the left or right.
- Fenceline tedding can be activated in any driving direction.
- Mechanical version; the wheels on all four rotors are set individually by hand, it is possible to select one of three lever positions.
- The most cost-effective version. If you do not require a fenceline tedding system, the wheels are mounted securely to the rotor casing as standard using roll pins.
- The hydraulic rotor folding system provides convenient operation from the tractor seat. In the transport position, the rotors can be rotated inwards to ensure safe transport and space-saving parking.
- The raised rotors are tilted close to the tractor, this provides an optimum centre of gravity. This provides an optimum centre of gravity. The transport interlock on the top link slot and the optional stabiliser struts guarantee safe road transport.
- Warning signs and road lights are standard.
- 16x6.5-8 rotor unit tyres.
- 14.44ft / 4.40 working width DIN.
- 8.20ft / 2.50m transport width.
- 7.38ft / 2.25m parking height.
- 1 S standard hydraulic connections.
- 1157 lbs / 525kg weight.
Optional Extras:
- Jockey wheel T 16"
- Fenceline spreading system mechanical
- Night-raking gearbox
- Anti-wrap guard
- Spare wheel 16x6.5-8
Specification for PÖTTINGER HIT 4.47 Mounted Tedder
Leave a Review
Ask a Question
Videos
-
Description
PÖTTINGER manufacture a range three-point mounted HIT tedders with four, six and eight rotors feature the very latest DYNATECH rotor technology and a proven headstock.
The highest requirements of small to medium-sized farms are met in full by our 4-rotor tedders. Designed for all forage types, these machines provide you with optimum spreading quality and perfect crop take-up.
PÖTTINGER HIT 4.47 mounted four-rotor tedder offer working widths (DIN) of 14.44' / 4.40 m. This model features a highly compact construction and is ideal for working on slopes. It's six tine arms per rotor guarantee an optimum spread pattern for every forage.
Key Features:
- Fenceline tedding –easy and convenient.
- Actively setting the wheels at an angle causes the tedder to run diagonally so the forage is directed onto the mown area.
- Neighbouring crops remain untouched because the wheels can be set to the left or right.
- Fenceline tedding can be activated in any driving direction.
- Mechanical version; the wheels on all four rotors are set individually by hand, it is possible to select one of three lever positions.
- The most cost-effective version. If you do not require a fenceline tedding system, the wheels are mounted securely to the rotor casing as standard using roll pins.
- The hydraulic rotor folding system provides convenient operation from the tractor seat. In the transport position, the rotors can be rotated inwards to ensure safe transport and space-saving parking.
- The raised rotors are tilted close to the tractor, this provides an optimum centre of gravity. This provides an optimum centre of gravity. The transport interlock on the top link slot and the optional stabiliser struts guarantee safe road transport.
- Warning signs and road lights are standard.
- 16x6.5-8 rotor unit tyres.
- 14.44ft / 4.40 working width DIN.
- 8.20ft / 2.50m transport width.
- 7.38ft / 2.25m parking height.
- 1 S standard hydraulic connections.
- 1157 lbs / 525kg weight.
Optional Extras:
- Jockey wheel T 16"
- Fenceline spreading system mechanical
- Night-raking gearbox
- Anti-wrap guard
- Spare wheel 16x6.5-8
-
Specifications
Mounted 4.7m 4 40hp 6 525kg 1.42m -
