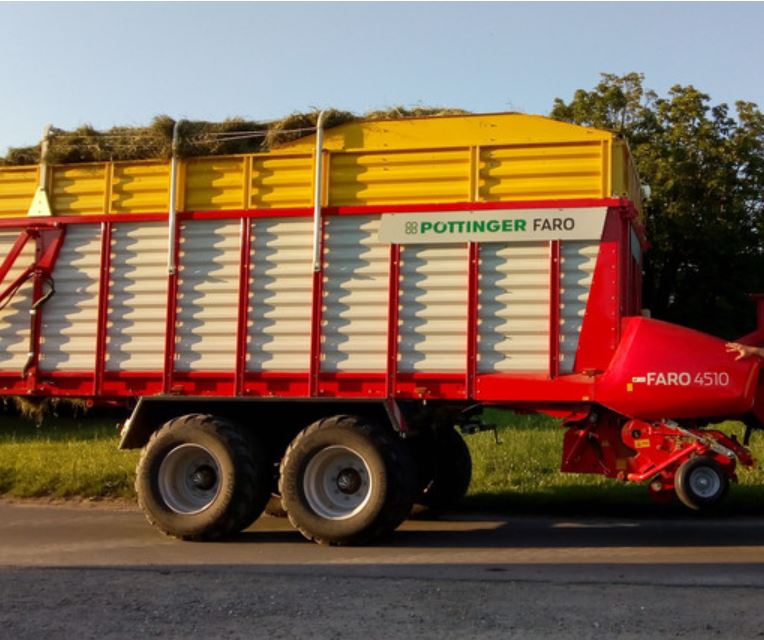

PÖTTINGER FARO 4510 D Rotary Loader Wagon
PÖTTINGER FARO 4510 D Rotary Loader Wagon
With the FARO series, PÖTTINGER meets your demand for high-performance rotor technology for medium-sized tractors.
The FARO 3510, 4010, 4510, and 5010 loader wagons made by PÖTTINGER are in the mid-sized segment between 90 and150 hp.
Key features:
- The 31 knife bank and powerful rotor drive for higher capacity give these new FAROs a high output.
- The FARO is the ideal choice for high forage quality thanks to the chopping system with 31 knives and a theoretical chopped length of 45 mm.
- The forage has the optimum structure for ruminants.
- An optimum distance between the knives and tines ensures smooth operation and protects the knives from foreign objects.
- Loading area length/width
- Overall height with 17" tyres/22" tyres: 3.56m/3.68m
- Standard unladen weight: 6.20T
- ROTOMATIC PLUS is the heart of the FARO range. Rugged and powerful, the rotor delivers high output chopping and compression.
- ROTOMATIC PLUS represents smooth, efficient chopping of the crop and perfect transfer from the pick-up.
- CONTROLLED FLOATING PICKUP: The sealed twin-race roller bearings fitted to the cam rollers are designed to withstand high stresses. With the sweeping action of the tines on the pick-up, it conserves the sward, lowers the level of dirt ingress, and prevents unnecessary wear to the tines.
- The pick-up with perfect ground tracking for the lowest possible crude ash content makes the loader wagon particularly suitable for harvesting forage.
- SUPERMATIC and EASY MOVE: The EASY MOVE knife bank swings out alongside the wagon.

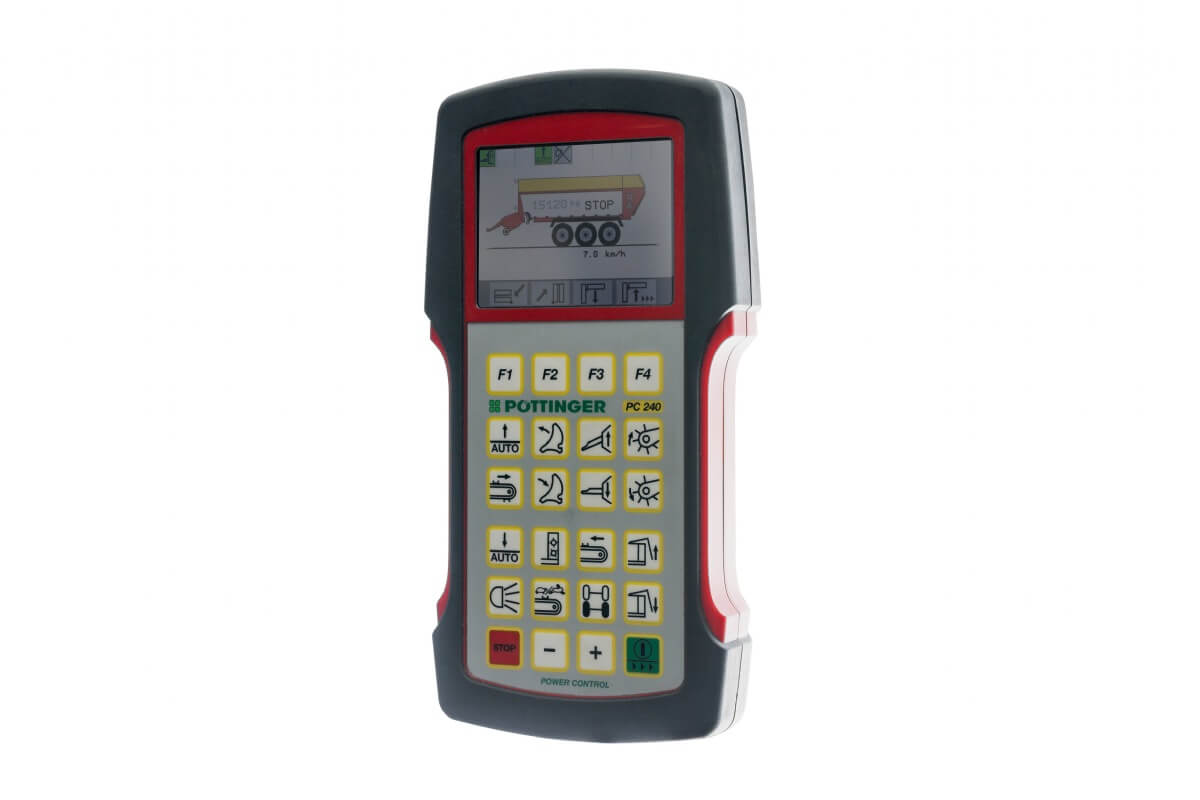

- Power Control and Parabolic leaf springs 13 t standard on FARO 4510D models
Optional extras:
- Available as an option on all FARO D models: For depositing the daily forage ration inside the cattle shed, PÖTTINGER offers a powerful cross conveyor belt with a width of 890 mm. This enables rapid forage delivery when needed.
- Rugged drawbar

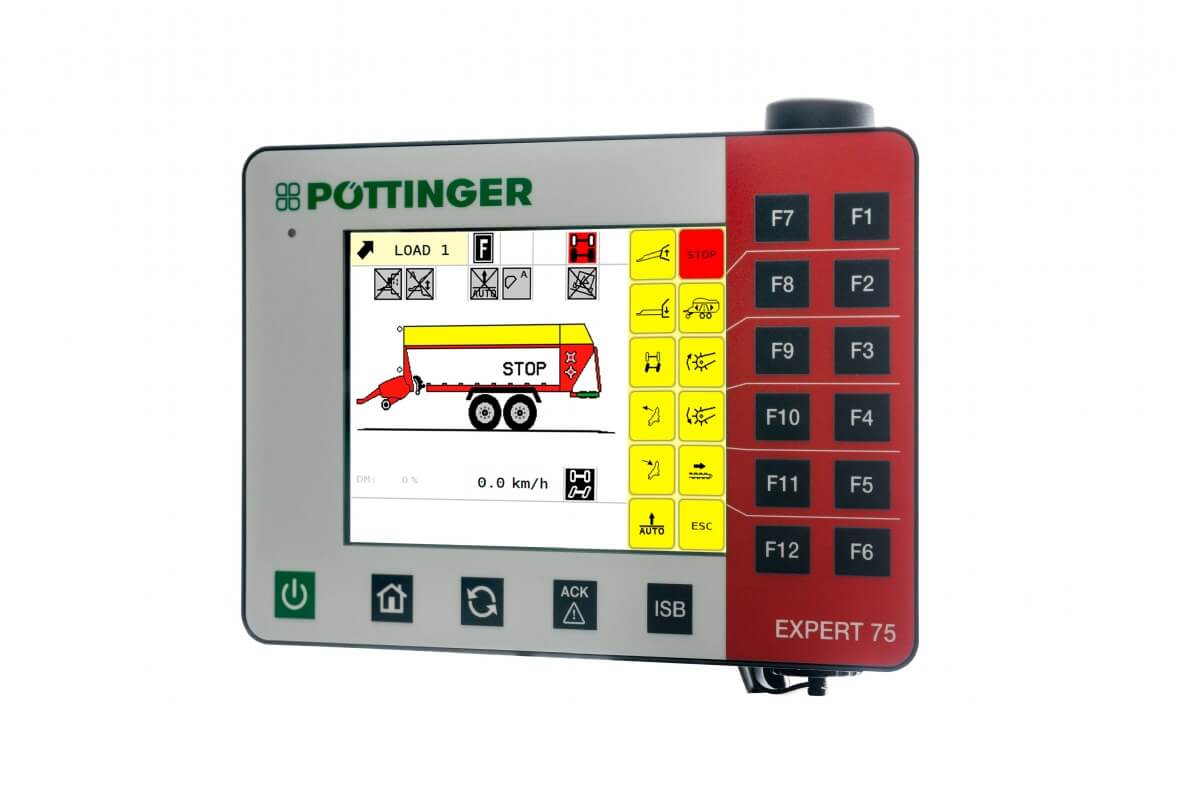

- EXPERT 75 CCI 1200 CCI ISOBUS
- Additional tracking roller for pick-up
- EASY MOVE
- Bolt on frame for 6/11 knives
- Automatic loading
- Low drawbar
- Drawbar damper
- Parabolic leaf springs 16 t
- Trailed axles
Specification for PÖTTINGER FARO 4510 D Rotary Loader Wagon
Self Loading
29m2
9.61m
2.42m
1.85m
Tandem
45mm
This product has no reviews.
Leave a Review
This product has no questions.
Ask a Question
Videos
-
Description
With the FARO series, PÖTTINGER meets your demand for high-performance rotor technology for medium-sized tractors.
The FARO 3510, 4010, 4510, and 5010 loader wagons made by PÖTTINGER are in the mid-sized segment between 90 and150 hp.
Key features:
- The 31 knife bank and powerful rotor drive for higher capacity give these new FAROs a high output.
- The FARO is the ideal choice for high forage quality thanks to the chopping system with 31 knives and a theoretical chopped length of 45 mm.
- The forage has the optimum structure for ruminants.
- An optimum distance between the knives and tines ensures smooth operation and protects the knives from foreign objects.
- Loading area length/width
- Overall height with 17" tyres/22" tyres: 3.56m/3.68m
- Standard unladen weight: 6.20T
- ROTOMATIC PLUS is the heart of the FARO range. Rugged and powerful, the rotor delivers high output chopping and compression.
- ROTOMATIC PLUS represents smooth, efficient chopping of the crop and perfect transfer from the pick-up.
- CONTROLLED FLOATING PICKUP: The sealed twin-race roller bearings fitted to the cam rollers are designed to withstand high stresses. With the sweeping action of the tines on the pick-up, it conserves the sward, lowers the level of dirt ingress, and prevents unnecessary wear to the tines.
- The pick-up with perfect ground tracking for the lowest possible crude ash content makes the loader wagon particularly suitable for harvesting forage.
- SUPERMATIC and EASY MOVE: The EASY MOVE knife bank swings out alongside the wagon.
- Power Control and Parabolic leaf springs 13 t standard on FARO 4510D models
Optional extras:
- Available as an option on all FARO D models: For depositing the daily forage ration inside the cattle shed, PÖTTINGER offers a powerful cross conveyor belt with a width of 890 mm. This enables rapid forage delivery when needed.
- Rugged drawbar
- EXPERT 75 CCI 1200 CCI ISOBUS
- Additional tracking roller for pick-up
- EASY MOVE
- Bolt on frame for 6/11 knives
- Automatic loading
- Low drawbar
- Drawbar damper
- Parabolic leaf springs 16 t
- Trailed axles
-
Specifications
Self Loading 29m2 9.61m 2.42m 1.85m Tandem 45mm -
