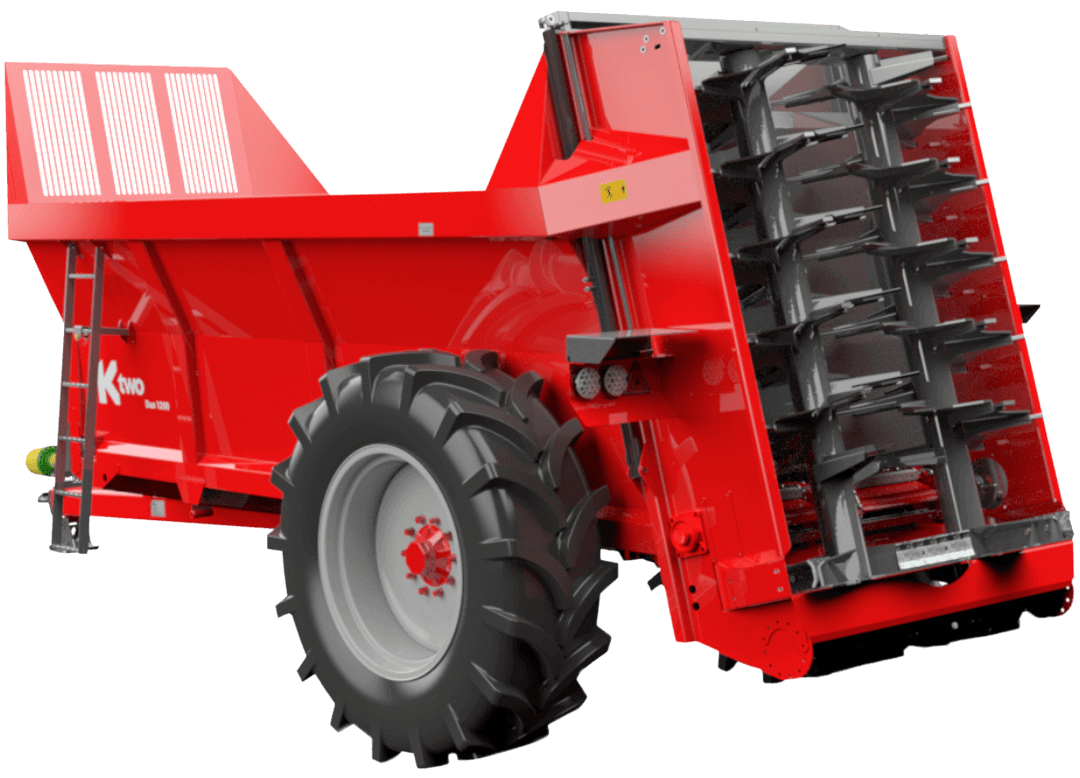

Ktwo MK6 1100 DUO Vertical Beater Muck Spreader
Ktwo MK6 1100 DUO Vertical Beater Muck Spreader
The Ktwo Duo range of twin vertical beater rear discharge muck spreaders offers a wide range of models to suit most farmers and contractors looking for a versatile manure spreader, capable of spreading a range of products with good accuracy and outputs. Available in capacities of 6–14 tonnes (9.8–23.2 m3) and with a wide range of optional extras, the Duo can be specified to suit most requirements.
Key features:
- 18.7 cubic metre capacity
- 10 stud Commercial axles with 420x180mm brakes
- 4 x 14mm marine chain – 96 tonne breaking strain
- Large 1050mm diameter spinning paddles
- 560/60 R22.5 wheels
- Versatile and accurate spread.
- Tapered body design for increased capacities up to14 tonnes.
- Two pairs of 14mm marine grade floor chains with closely spaced slats and individual tensioning for positive discharge and consistent spreading.
- Drawbar is constructed from a single length of 180mm box section that is 12mm thick for superior strength and improved manoeuvrability.
- Flared “easy out” body construction aids loading, carrying capacity and flow whilst maintaining a good transport width.
- Twin LED light units with automatic light covers (when fitted with optional slurry door) provide excellent rearward visibility for added peace of mind.
- Open flighted, dynamically balanced rotors rotate at a fast 386rpm to provide a wider, finer spread pattern.
- Hardened boron steel rotor teeth for increased durability and longevity.
- 6-tooth spiral flight construction provides an even spread pattern for all materials.
- A 120mm square-section commercial axle fitted with 420 × 180 S-Cam brakes and 35mm cylinders gives improved ground clearance and breaking performance.
- Large wheels provide excellent ground flotation and traction in adverse weather conditions.
- Wide 1700mm beater set and large 1050mm diameter spinning paddles for the accurate broadcast of fine materials (MK6).
Specification for Ktwo MK6 1100 DUO Vertical Beater Muck Spreader
Manure
13.3m3
5170kg
7050mm /23ft 2
3350mm / 11ft 0
2480mm / 8ft 2
1 x 120 x 120 (mm)
10 / 420 x 180
520 / 85 R38
1000rpm
120hp
4 / 14mm
60mm
This product has no reviews.
Leave a Review
This product has no questions.
Ask a Question
Videos
-
Description
The Ktwo Duo range of twin vertical beater rear discharge muck spreaders offers a wide range of models to suit most farmers and contractors looking for a versatile manure spreader, capable of spreading a range of products with good accuracy and outputs. Available in capacities of 6–14 tonnes (9.8–23.2 m3) and with a wide range of optional extras, the Duo can be specified to suit most requirements.
Key features:
- 18.7 cubic metre capacity
- 10 stud Commercial axles with 420x180mm brakes
- 4 x 14mm marine chain – 96 tonne breaking strain
- Large 1050mm diameter spinning paddles
- 560/60 R22.5 wheels
- Versatile and accurate spread.
- Tapered body design for increased capacities up to14 tonnes.
- Two pairs of 14mm marine grade floor chains with closely spaced slats and individual tensioning for positive discharge and consistent spreading.
- Drawbar is constructed from a single length of 180mm box section that is 12mm thick for superior strength and improved manoeuvrability.
- Flared “easy out” body construction aids loading, carrying capacity and flow whilst maintaining a good transport width.
- Twin LED light units with automatic light covers (when fitted with optional slurry door) provide excellent rearward visibility for added peace of mind.
- Open flighted, dynamically balanced rotors rotate at a fast 386rpm to provide a wider, finer spread pattern.
- Hardened boron steel rotor teeth for increased durability and longevity.
- 6-tooth spiral flight construction provides an even spread pattern for all materials.
- A 120mm square-section commercial axle fitted with 420 × 180 S-Cam brakes and 35mm cylinders gives improved ground clearance and breaking performance.
- Large wheels provide excellent ground flotation and traction in adverse weather conditions.
- Wide 1700mm beater set and large 1050mm diameter spinning paddles for the accurate broadcast of fine materials (MK6).
-
Specifications
Manure 13.3m3 5170kg 7050mm /23ft 2 3350mm / 11ft 0 2480mm / 8ft 2 1 x 120 x 120 (mm) 10 / 420 x 180 520 / 85 R38 1000rpm 120hp 4 / 14mm 60mm -
