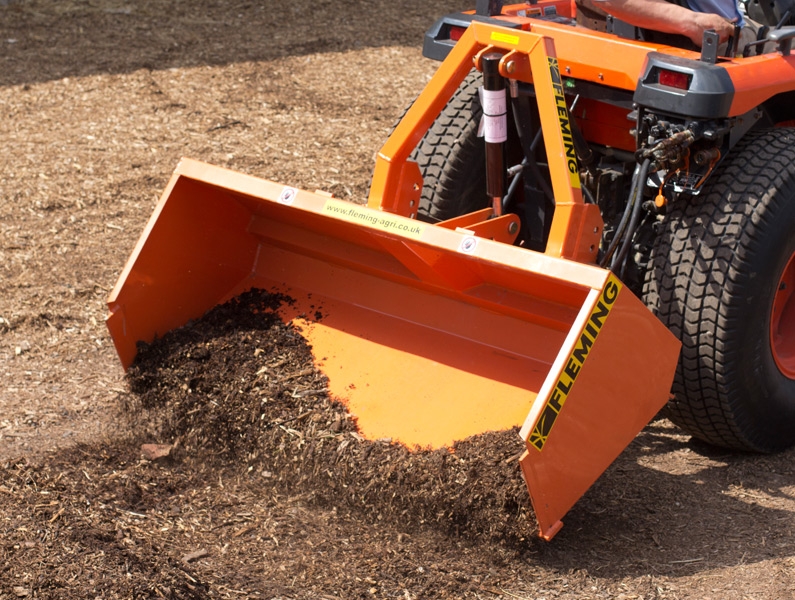

Fleming Agri 7ft Hydraulic Tipping Transport Boxes
Fleming Agri 7ft Hydraulic Tipping Transport Boxes
The Fleming Agri 7ft hydraulic tipping transport box is from Fleming Agri’s large hydraulic transport box range which offers transport boxes from 5ft (1.5m) up to 7ft. (2.13m). The internal reinforcing shoes tie the strength of the floor to the cross beams on the back of the box creating a solid back plate to absorb the force of high horse power tractors. The reinforcing shoes have smooth rounded edges for easy unloading and cleaning.
It offers a heavy duty double acting ram, reinforced floor and nose plate for loading and scraping. The heel of the box is fitted with a scraping blade, supported by the floor skids further adding reinforcing strength to the back of the box and giving the capability of grading and levelling stones, sand, soil ,etc.
It boast a heavy duty structural box section hitch with reinforced joints for extra strength and the 5mm thick folded form of the box has 2 internal reinforcing beams across the back of the body of the box eliminating any flexing when the box is under heavy load. This model is suitable for max. horse power of 130.
HYD7 requires double acting spool valve and has a range of 3PL settings to suit most tractors, has a double jaw lift arm pin support.
Specification for Fleming Agri 7ft Hydraulic Tipping Transport Boxes
Leave a Review
Ask a Question
Videos
-
Description
The Fleming Agri 7ft hydraulic tipping transport box is from Fleming Agri’s large hydraulic transport box range which offers transport boxes from 5ft (1.5m) up to 7ft. (2.13m). The internal reinforcing shoes tie the strength of the floor to the cross beams on the back of the box creating a solid back plate to absorb the force of high horse power tractors. The reinforcing shoes have smooth rounded edges for easy unloading and cleaning.
It offers a heavy duty double acting ram, reinforced floor and nose plate for loading and scraping. The heel of the box is fitted with a scraping blade, supported by the floor skids further adding reinforcing strength to the back of the box and giving the capability of grading and levelling stones, sand, soil ,etc.
It boast a heavy duty structural box section hitch with reinforced joints for extra strength and the 5mm thick folded form of the box has 2 internal reinforcing beams across the back of the body of the box eliminating any flexing when the box is under heavy load. This model is suitable for max. horse power of 130.
HYD7 requires double acting spool valve and has a range of 3PL settings to suit most tractors, has a double jaw lift arm pin support.
-
Specifications
7ft 380kg 2170mm 610mm 930mm 0.78m3 130 6mm Cat 2 No Yes -
